EVAPORATOR

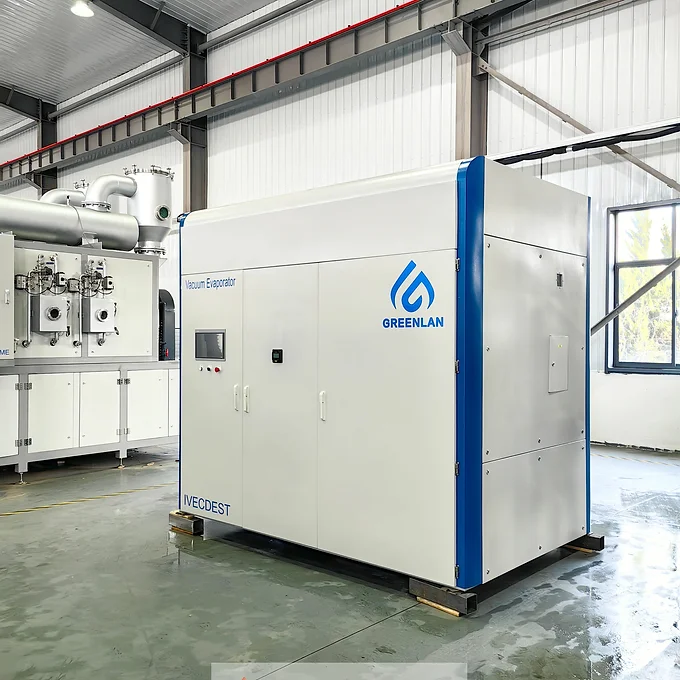

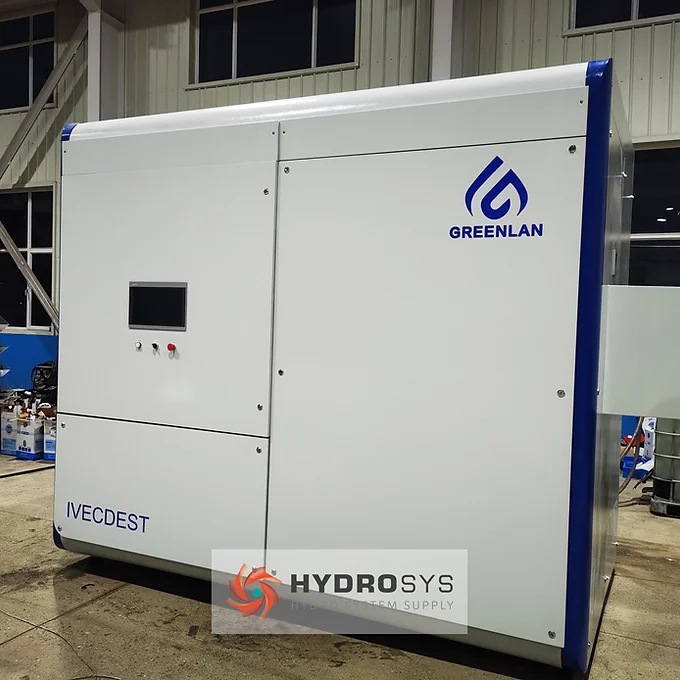

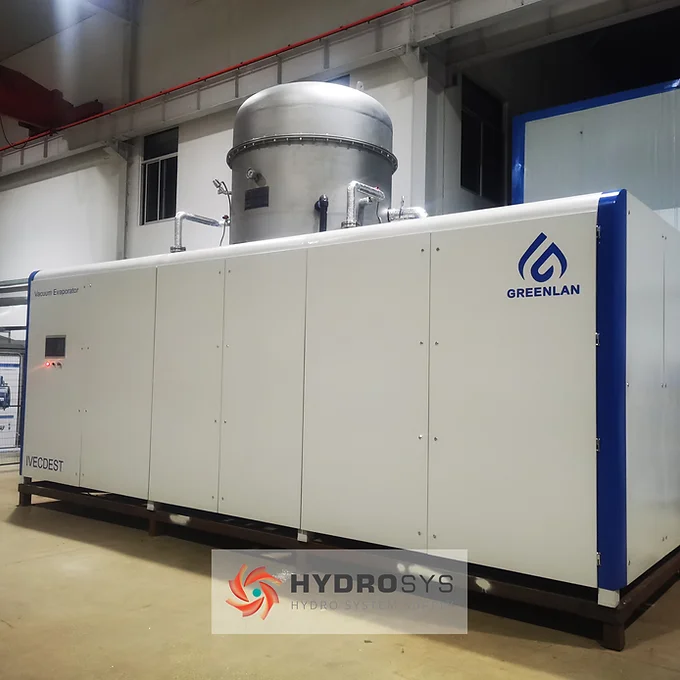

Evaporator Concentrator

Product Details

Evaporator Concentrator, an evaporator for concentration serving as the first stage of the Zero Liquid Discharge (ZLD) process. It uses a vacuum system together with a Heat Pump to evaporate wastewater at a low temperature of about 35–45°C, reducing wastewater volume and increasing the concentration of the solution, while recovering high-quality distillate for reuse. The Heat Recovery system reuses the latent heat from condensation, helping to reduce electricity consumption, before sending the concentrated solution on to the Crystallizer stage.

Request a Quote
Call Us PDF Brochure
Key Features: Evaporator Concentrator
  • Vacuum evaporation at a low temperature of 35–45°C
  • Heat Pump with Heat Recovery for energy savings
  • Forced Circulation reduces scaling
  • Recovers low TDS/COD distillate for reuse
  • Corrosion-resistant construction such as SS316, Duplex and Titanium
  • Fully automatic control with PLC
Benefits: Evaporator Concentrator
  • Dramatically reduces the volume of wastewater requiring disposal, cutting off-site disposal costs
  • Recovers clean water for process reuse
  • Serves as the concentration stage ahead of the Crystallizer for achieving ZLD
  • Fast ROI thanks to the energy-saving heat pump

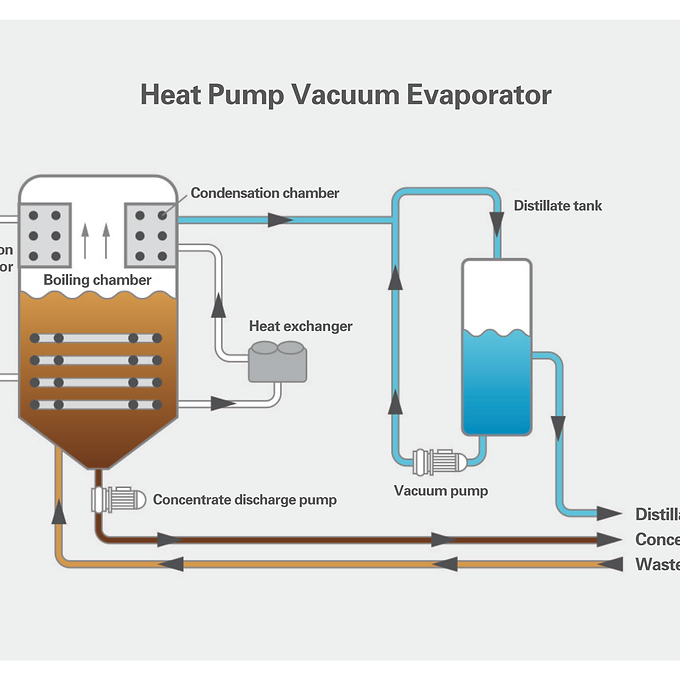

Working Principle: Evaporator Concentrator
  • 1. Wastewater is heated under vacuum, lowering the boiling point to 35–45°C, using the hot side (condenser) of the heat pump.
  • 2. The water evaporates into vapor.
  • 3. The cold side (evaporator) of the heat pump condenses the vapor into distilled water, and the released latent heat is drawn back to continue evaporating the wastewater — energy that would normally be lost is reused within the system.
  • 4. The greatly reduced volume of concentrate is passed on to the next stage.
Supported Industries
  • Metals and surface plating
  • Chemicals and pharmaceuticals
  • Food and beverage
  • Cosmetics
  • Printing
  • ZLD projects requiring wastewater volume reduction before crystallization
Product Highlights
  • Reduces wastewater volume while recovering high-quality distillate for reuse
  • Saves energy with a Heat Pump and a latent heat reuse system
  • Forced Circulation system reduces scaling
  • Supports extension to a Crystallizer so the ZLD system can operate completely
