Decanter CentrifugeDecanter CentrifugeDecanter CentrifugeDecanter Centrifuge
DEWATERING

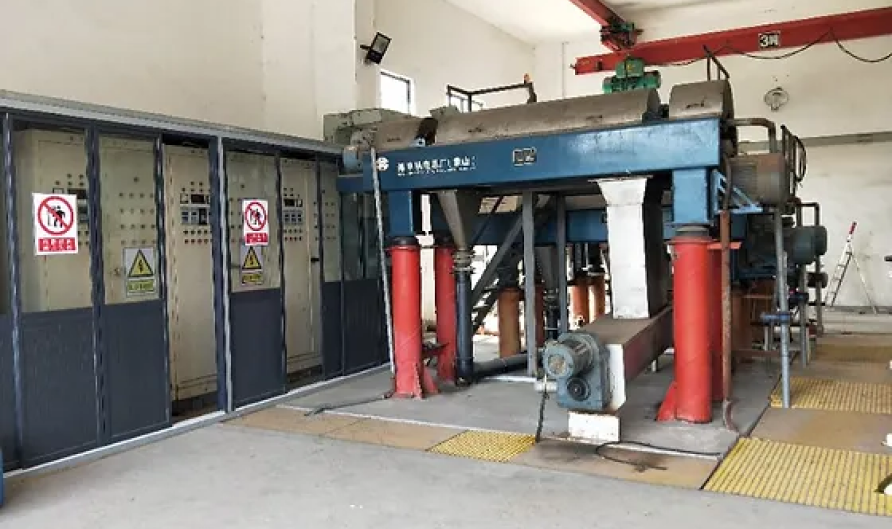

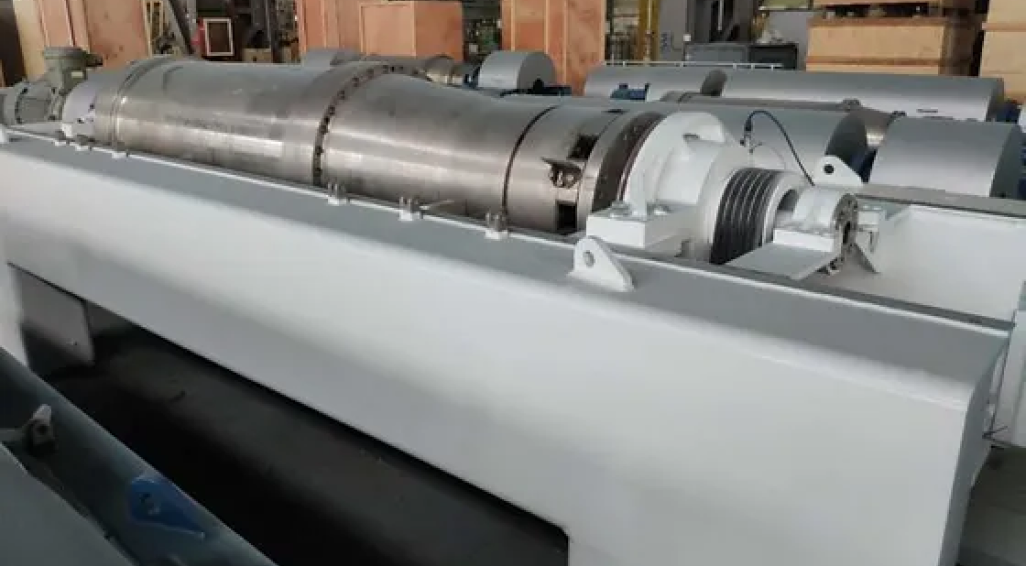

Decanter Centrifuge

Starting price 5,000,000

Products are configured to your site conditions; final pricing depends on the assessment and the most suitable model.

Product Details

Decanter Centrifuge is a centrifugal sludge dewatering machine that separates solids and liquids by high-speed centrifugal force. It handles sludge concentrations of approximately 2,000–30,000 ppm and produces a dry sludge cake of approximately 20–30% DS. It operates continuously in a closed system and supports high throughput in a limited space, suitable for industrial applications requiring speed and continuous operation.

Request a Quote
Call Us PDF Brochure
Key Features: Decanter Centrifuge
  • Separates solids and liquids by high centrifugal force, supporting both thickening and sludge dewatering
  • Handles feed sludge concentrations of approximately 2,000–30,000 ppm
  • Produces a dry sludge cake of approximately 20–30% DS
  • Operates continuously in a closed system, helping reduce odour and contact
  • Two-motor drive system with Energy Feedback helps reduce energy consumption
  • Wear parts coated with tungsten carbide, easy to remove and replace
  • Requires less installation space than a Filter Press and a Belt Press
Benefits: Decanter Centrifuge
  • Highest throughput per unit of floor space and the fastest in its category
  • Continuous closed-system operation with odor control
  • Handles a wide range of sludge concentrations
  • Saves energy through the energy-feedback drive
  • Low maintenance costs thanks to easily replaceable wear parts
Working Principle: Decanter Centrifuge
  • 1. Polymer-conditioned sludge is fed into the rapidly spinning bowl.
  • 2. Centrifugal force throws the solids against the bowl wall.
  • 3. A screw conveyor rotating at a slightly different speed transports the solids to the conical end for discharge.
  • 4. The clarified liquid flows out over the weir at the opposite end.
Supported Industries
  • Municipal and large-scale industrial wastewater treatment
  • Food and beverage
  • Oils and fats
  • Chemicals
  • Applications requiring fast, continuous dewatering in systems that cannot stop
Product Highlights
  • Supports high throughput and separates sludge quickly, suitable for work requiring continuous operation
  • Flexible, able to thicken, dewater and separate solids and liquids in a single machine
  • Drive system with Energy Feedback helps reduce energy consumption
  • Wear parts coated with tungsten carbide, increasing durability and reducing maintenance time
  • Operates continuously in a closed system, helping control odour and reduce contact with sludge

Related Products

View All Products
Filter Press
DEWATERING

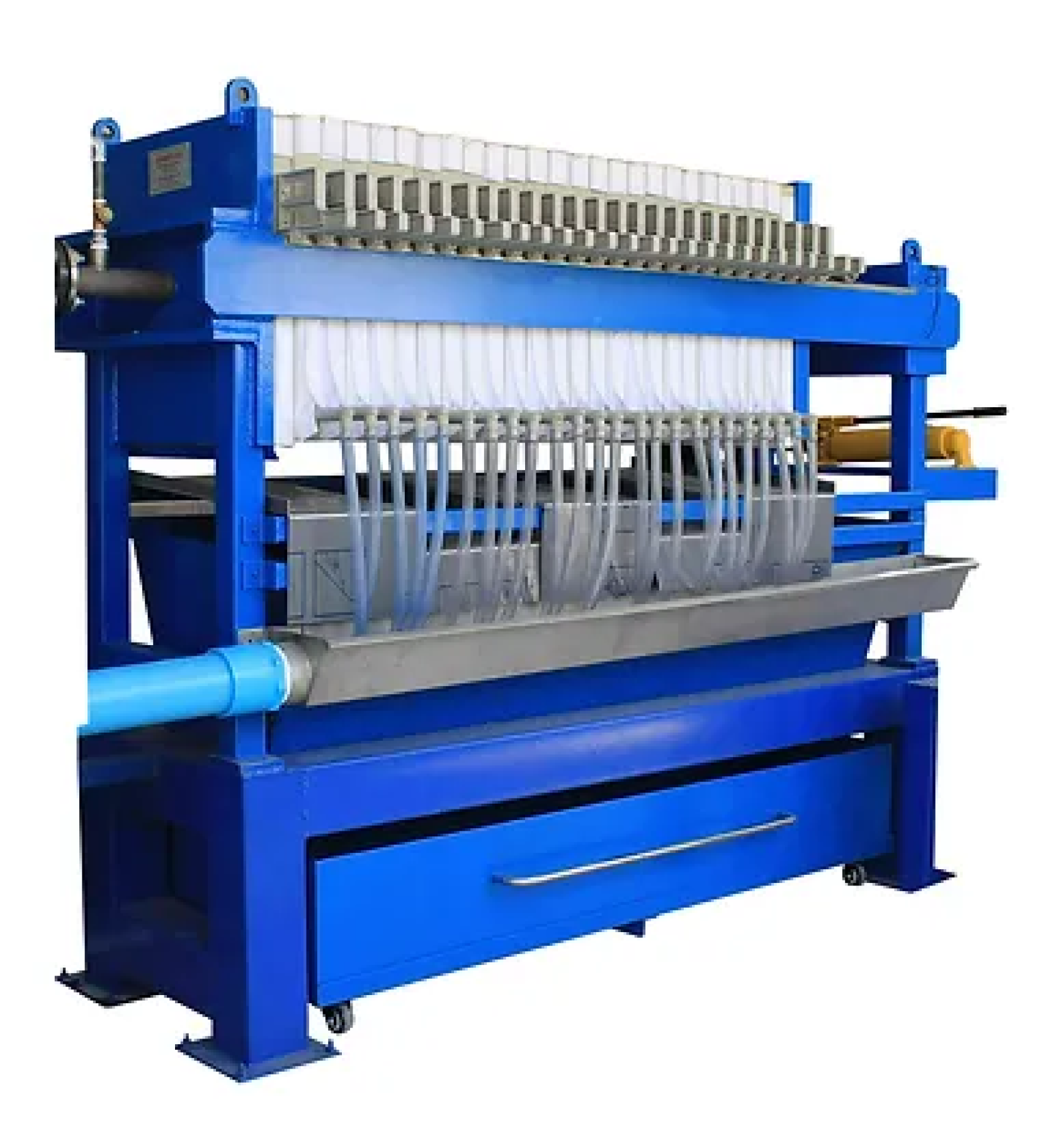

Filter Press

The Filter Press / Plate & Frame Filter Press is a sludge pressing machine that uses high pressure to separate solids and liquids, producing sludge with low moisture, generally around 50–70%. It supports operation from manual to fully automatic systems and offers optional extras such as Membrane Squeeze and an automatic filter cloth washing system. It is suitable for applications that require efficient reduction of sludge moisture.

View Details
Screw Press
DEWATERING

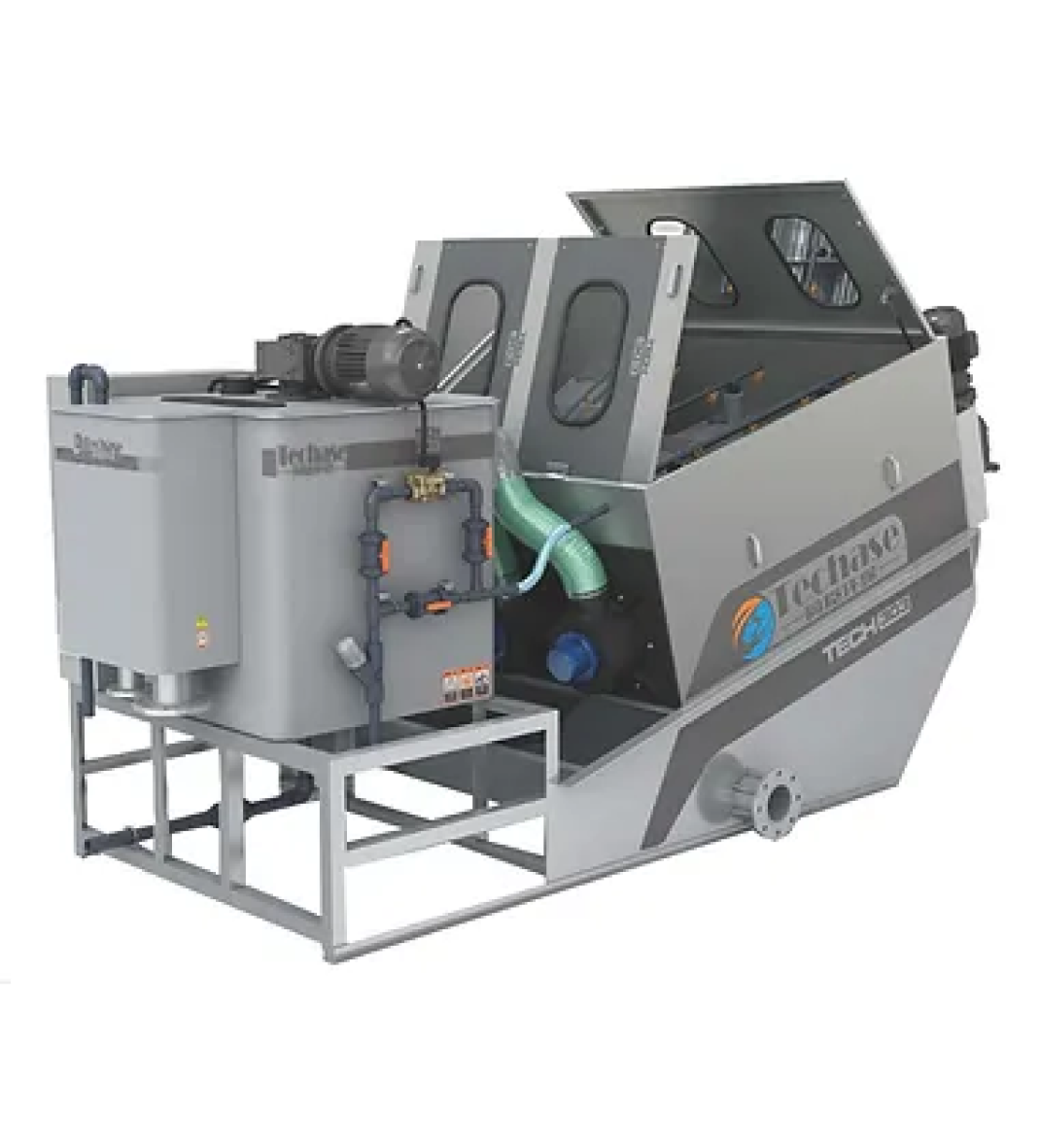

Screw Press

Screw Press (Volute Dewatering Press) is a sludge dewatering machine that separates solids and liquids by the mechanical pressing action of a screw and rings, without using heat. It consumes little energy, approximately 1–5 kW per unit, operates continuously 24 hours, runs quietly and does not clog easily. Suitable for dewatering biological sludge, chemical sludge and food waste.

View Details
Belt Filter Press
DEWATERING

Belt Filter Press

Belt Filter Press is a belt-type sludge dewatering machine that continuously separates water from sludge by the pressing and shear forces between a pair of belts running over rollers. It produces a dry sludge cake of approximately 18–25% DS from feed sludge with a concentration of 0.8–4%. Suitable for systems with large sludge volumes that require continuous operation with low energy consumption.
